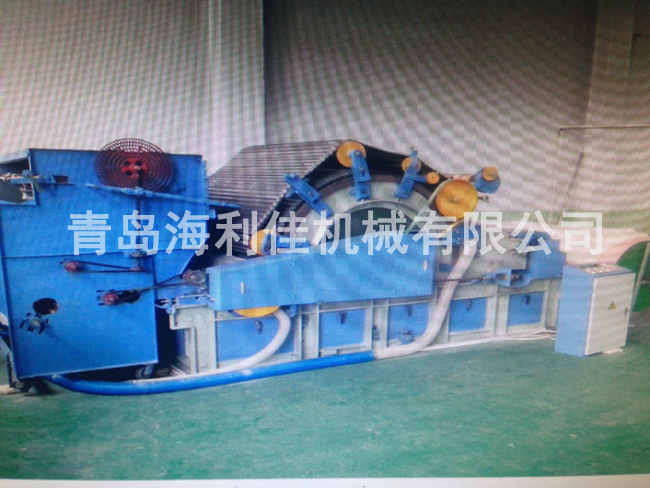

Our research and development by the domestic market requirements unique to widen spent shells equipment, products can reach 1.5 to 2.4 m width, unlimited length, carding effect in line with national FZ / T93033-1995 standards. The machine computer operation, high yield, good quality, smooth operation, low power consumption, easy maintenance, less wearing parts, automatic feed, labor, Feeding uniform, and safety.
Use
Before the procedure of this machine is the cotton gin, the machine for the processing of cotton fiber and chemical fiber. The former procedure sent cotton, chemical fiber, etc. opening carding impurity. Curly, massive groups of cotton fiber become straight single state, and in the process, get rid of the legacy of the ginning process broken seed, short fiber impurities, and then directly processed into a quilt.
Main specifications and technical parameters
Do not machine ---- right (standing in front of the machine to the husband)
Machine width 1500 mm width ----
Stripper mode ---- 3-roller or four roller user selectable
Working cylinder diameter ---- ¢ 1289 Haomi
Cylinder speed (optional) ---- 330 rpm / min, 360 r / min
Working diameter of doffer ---- ¢ 707 Haomi
Astoria ---- transmission gear
---- Astoria speed 8-60 rev / min
Motor ---- main motor 5.5KW
Astoria Motor ---- 1.1kw
Area (length × width) ---- 4500 × 2400 Haomi
---- 5 tons weight
A production capacity ----- 40-70 kg / h
